End Mills > VFX5

End Mills

VFX5
(CUTTING FOR TITANIUM ALLOY)

  • Vertical inserts with high strength cutting edge.
  • Screw-on type.
  • High efficiency milling titanium alloys.

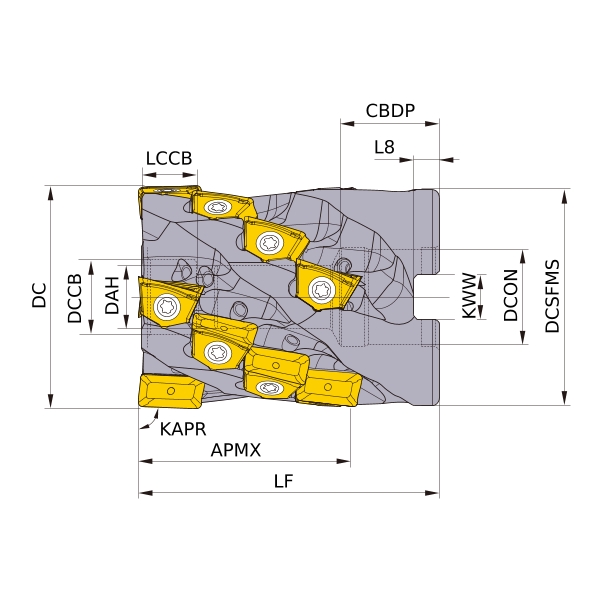

Type1 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
VFX5-040A03A026R Type1 CAD R
VFX5-040A03A038R Type1 CAD R
VFX5-050A04A026R Type1 CAD R
VFX5-050A04A038R Type1 CAD R
VFX5-050A04A050R Type1 CAD R
VFX5-050X03A026R Type1 CAD R
VFX5-050X03A038R Type1 CAD R
VFX5-050X04A038R Type1 CAD R
VFX5-063A05A026R Type1 CAD R
VFX5-063A05A063R Type1 CAD R
VFX5-080A06A075R Type1 CAD R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
6 3 40 26 21 50 16 38.2 8.5 5.6 8.4 0.3   90°
9 3 40 38 21 60 16 38.2 8.5 5.6 8.4 0.4   90°
8 4 50 26 21 50 22 48.2 10.5 6.3 10.4 0.5   90°
12 4 50 38 21 60 22 48.2 10.5 6.3 10.4 0.6   90°
16 4 50 50 21 70 22 48.2 10.5 6.3 10.4 0.7   90°
6 3 50 26 23 50 27 48.2 12.5 7 12.4 0.4   90°
9 3 50 38 23 60 27 48.2 12.5 7 12.4 0.5   90°
12 4 50 38 23 60 27 48.2 12.5 7 12.4 0.5   90°
10 5 63 26 28 60 27 61 12.5 7 12.4 1   90°
25 5 63 63 28 85 27 61 12.5 7 12.4 1.4   90°
36 6 80 75 28 100 32 77.3 16.5 8 14.4 2.8   90°
  1

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

Return to TOP
