End Mills >VPX300_SCREW-IN >VPX300R4004AM1640

End Mills

VPX300_SCREW-IN
(Multi-functional Cutter for High Efficiency Machining)

VPX300R4004AM1640

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

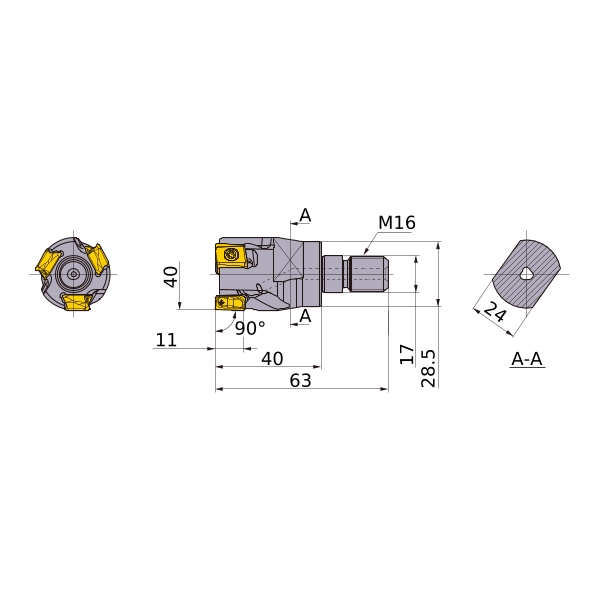

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 40
DCON 17
DCSFMS 28.5
KAPR 90°
RMPX 1.06°
LF 40
OAL 63
S10 24
APMX 11
GAMP -6°
GAMF -22.5°
WT 0.26
CRKS M16
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
2D Model (DXF)
CAD data name Download
VPX300R4004AM1640
CAD

3D Detail Model (STP,STL)
CAD data name Download
VPX300R4004AM1640
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VPX300R4004AM1640_MR0_2
0.2 CAD
VPX300R4004AM1640_MR0_4
0.4 CAD
VPX300R4004AM1640_MR0_8
0.8 CAD
VPX300R4004AM1640_MR1_0
1 CAD
VPX300R4004AM1640_MR1_2
1.2 CAD
VPX300R4004AM1640_MR1_6
1.6 CAD
VPX300R4004AM1640_MR2_0
2 CAD
VPX300R4004AM1640_MR2_4
2.4 CAD
VPX300R4004AM1640_MR3_0
3 CAD
VPX300R4004AM1640_MR3_2
3.2 CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
