Face Cutter >BRP >BRP6PR05004B

Face Cutter

BRP6


BRP6PR05004B

Product Information

  • Multi functional milling.
  • Round shape insert gives strong cutting edge.
  • 11°positive insert.
  • Suitable for roughing of moulds and dies.

The actual product may differ from the displayed image.

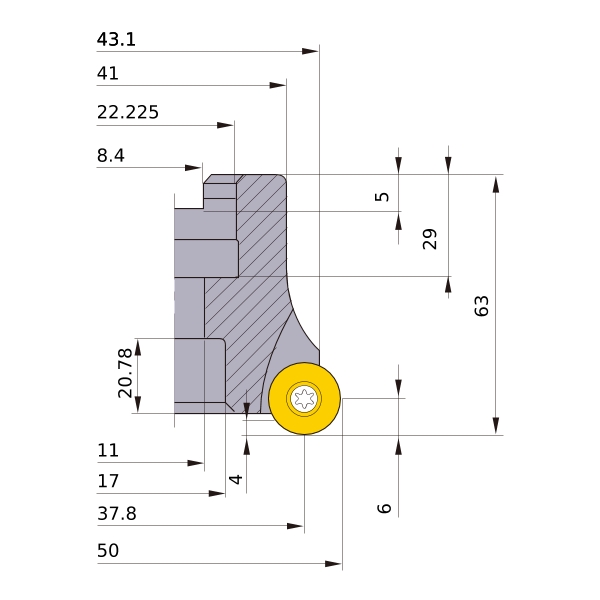

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 4
DC 37.8
DCX 50
DCON 22.225
BD 43.1
DCSFMS 41
DAH 11
DCCB 17
L8 5
LF 63
CBDP 29
LCCB 20.78
KWW 8.4
APMX 6
GAMP +5°
GAMF -2°
WT 0.5
Peripheral effective cutting edge count: ZEFP 4
