Face Cutter >FE404 >FE404R1020T

Face Cutter

FE404
(HIGH FEED CUTTING FOR CAST IRON)

FE404R1020T

Product Information

  • 21°positive insert.
  • High rake and high relief angle.
  • Suitable for light alloy machining.
  • Easy tool exchange.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock

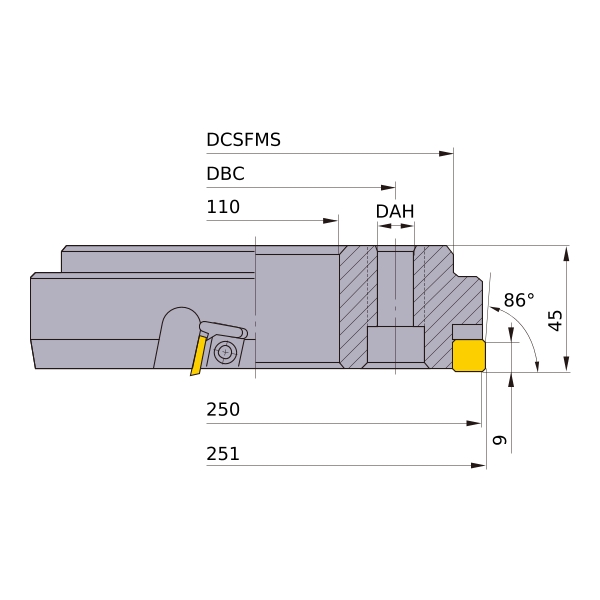

Unit of Length M
DC 250
DCX 251
DCON 110
KAPR 86°
LF 45
APMX 9
WT 9.9
Peripheral effective cutting edge count: ZEFP 20
2D Model (DXF)
CAD data name Download
FE404R1020T
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
