Face Cutter >FP590 >FP590R1028T

Face Cutter

FP590
（HIGH FEED CUTTING FOR CAST IRON）

FP590R1028T

Product Information

  • Suitable for cast iron finishing.
  • Multi-insert design facilitates highly efficient machining.
  • For high feed cutting
  • Easy tool exchange.
  • 11°positive insert.

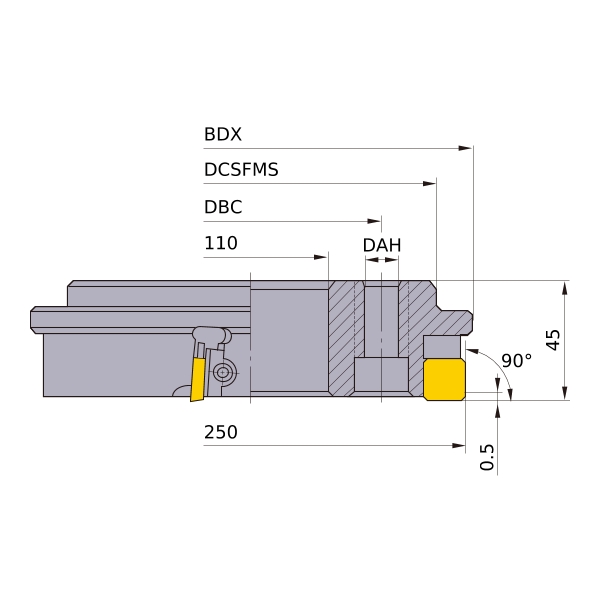

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 250
DCON 110
BD 260
KAPR 90°
LF 45
APMX 0.5
GAMP +5°
GAMF 0°
WT 9.8
Peripheral effective cutting edge count: ZEFP 28
2D Model (DXF)
CAD data name Download
FP590R1028T
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition

  • Sold Separately

  • Insert for Rotating Tools

  • Spare Parts
