Insert for Rotating Tools >XDGX227020PDFR-GL

Insert for Rotating Tools

XDGX227020PDFR-GL

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade LC15TF
ANSI XDGX227020PDFR-GL
Stock

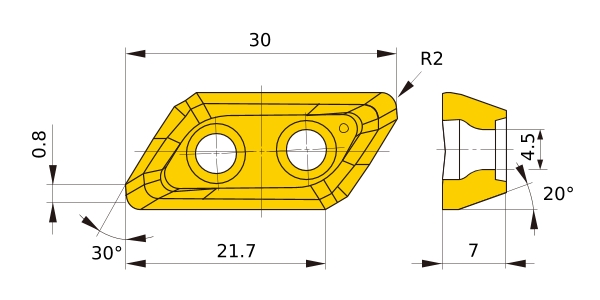

Unit of Length M
D1 4.5
AN 20°
LE 21.7
L 30
BS 0.8
S 7
RE 2
Breaker GL
Classification of Grades
Non-coated・Carbide TF15
3D Detail Model (STP,STL)
CAD data name Download
XDGX227020PDFR-GL
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
