Solid End Mills

MS3ES
(End mill, 3 flute, For small automatic lathe)

MS3ESD0400L45S04

Product Information

  • 3 flute end mill.

The actual product may differ from the displayed image.

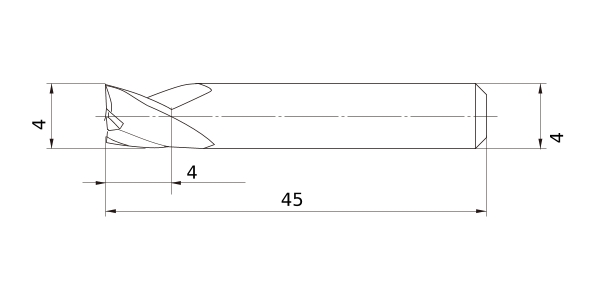

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M
DC 4
DCON 4
LF 45
APMX 4
FHA 30°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS
2D Model (DXF)
CAD data name Download
MS3ESD0400L45S04
CAD

3D Light Model (STP,STL)
CAD data name Download
MS3ESD0400L45S04
CAD CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
