Solid End Mills >MP3XB >MP3XBR0050N020T05

Solid End Mills

MP3XB
(Ball nose, 3 flute, Taper neck)

MP3XBR0050N020T05

Product Information

  • 3 flute long neck ball nose end mill.

The actual product may differ from the displayed image.

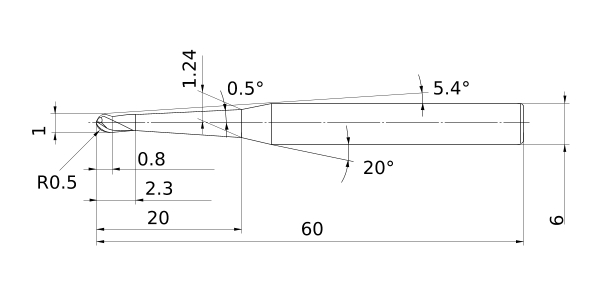

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M
DC 1
DCON 6
BD2 1.24
B2 5.4°
BHTA2 0.5°
BHTA3 20°
LF 60
LU 2.3
LB2 20
APMX 0.8
FHA 45°
RE 0.5
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.005
R Tolerance + 0.005
Coated MS+
2D Model (DXF)
CAD data name Download
MP3XBR0050N020T05
CAD

3D Light Model (STP,STL)
CAD data name Download
MP3XBR0050N020T05
CAD CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
