Solid End Mills

MPJHV
(End mill, Medium cut length, 4 flute, Lrregular helix flutes)

MPJHVD0300AP12

Product Information

  • 4 flute irregular helix end mill for reduced vibration when machining stainless and carbon steel.
  • Semi long flute length suitable for vertical wall finishing.

The actual product may differ from the displayed image.

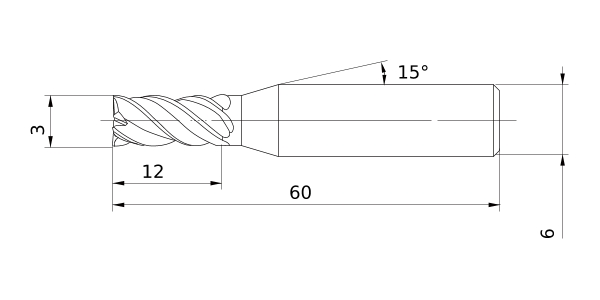

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M
DC 3
DCON 6
BHTA2 15°
LF 60
APMX 12
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS+
2D Model (DXF)
CAD data name Download
MPJHVD0300AP12
CAD

3D Light Model (STP,STL)
CAD data name Download
MPJHVD0300AP12
CAD CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
