Solid End Mills >iMX_B3FV >IMX16B3FV16012

Solid End Mills

iMX_B3FV
（Ball nose head, For high efficiency machining, 3 flute, Irregular curve）

IMX16B3FV16012

Product Information

  • High efficiency machining is possible in deep engraving processing(DCx5)

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP8120
Stock
Unit of Length M

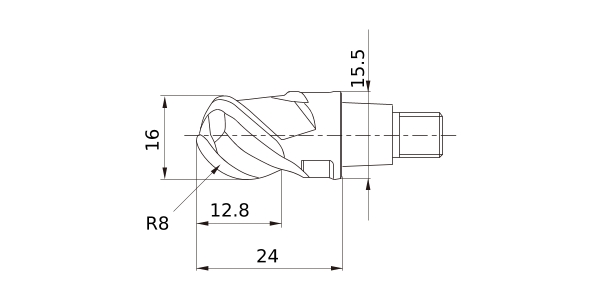

DC 16
DCON 15.5
LH 24
APMX 12.8
FHA 45°
RE 8
Peripheral effective cutting edge count: ZEFP 3
R Tolerance - -0.02
R Tolerance + 0.02
2D Model (DXF)
CAD data name Download
IMX16B3FV16012
CAD
