小型刀具

GYA_D90
（90°L型刀柄）

6N2R4G1

产品信息

  • 刀柄可共用，超群的性价比
  • 采用高可靠性的刀片夹紧机构
  • 采用高精度、长寿命刀片，可对应各种加工形态
  • 新型TRI-LOCK机构
  • 标注的尺寸为标准刀片的值。

实际产品与显示图像存在不一致情况，敬请留意。

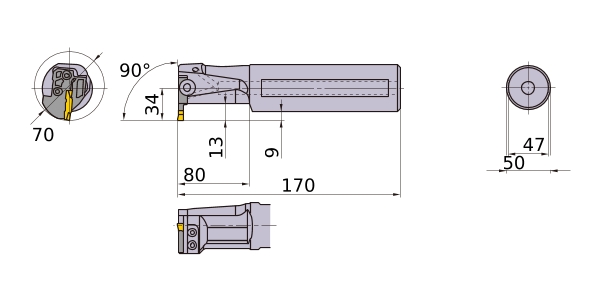

图   [放大 ]

图   [放大 ]

尺寸 (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
切削方向 R
库存
长度单位 M
DMIN 70
DCON 50
LF 170
CDX 13
LDRED 80
WF 34
H 47
HF 47
CW 4
WF2 9
Peripheral effective cutting edge count: ZEFP 1
本体 GYDR50P90F-M25L
模块 GYM25LA-G14
2D 模型 (DXF)
CAD数据名称 下载
6N2R4G1
CAD
