Boring >M-FSTUP_INCH >M-FSTUPR-061.8-C

Boring

M-FSTUP_INCH
(Dimple Bar)

M-FSTUPR-061.8-C EDP:237868

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 6 times the diameter.

The actual product may differ from the displayed image.

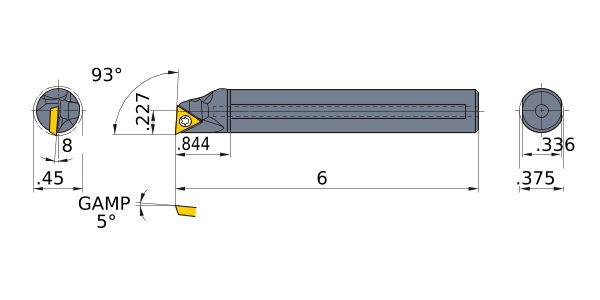

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI JX06M-STUPR1.8
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .45
DCON .375
KAPR 93°
LF 6
LDRED .844
WF .227
H .336
GAMF 8
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1.81.5
2D Model (DXF)
CAD data name Download
M-FSTUPR-061_8-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
M-FSTUPR-061_8-C
CAD

3D Light Model (STP,STL)
CAD data name RE Download
M-FSTUPR-061_8-C_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
