Boring >M-FSTUP_INCH >M-FSTUPL-061.8-C

Boring

M-FSTUP_INCH
（Dimple Bar）

M-FSTUPL-061.8-C EDP:237876

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 6 times the diameter.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

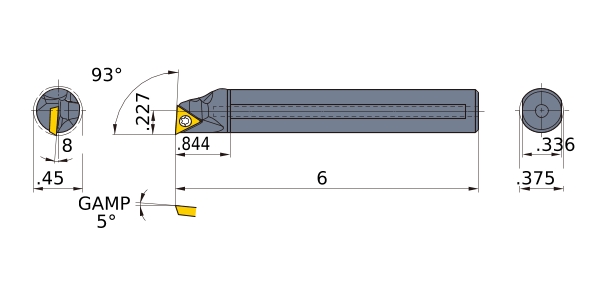

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX06M-STUPL1.8
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .45
DCON .375
KAPR 93°
LF 6
LDRED .844
WF .227
H .336
GAMF 8
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1.81.5
