Boring >M-FSVPB_INCH >M-FSVPBL-122-C

Boring

M-FSVPB_INCH
(Dimple Bar)

M-FSVPBL-122-C EDP:307635

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 6 times the diameter.
  • Excellent vibration resistance due to light dimple head.

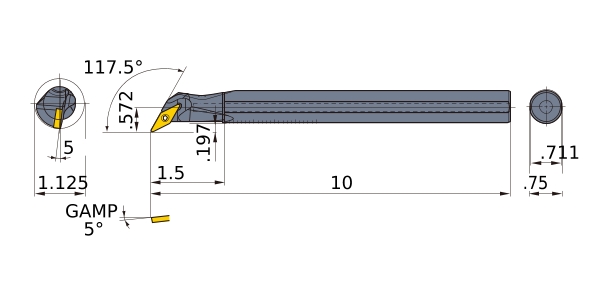

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.125
DCON .75
KAPR 117.5°
LF 10
LDRED 1.5
WF .572
H .711
WF2 .197
GAMF 5
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__22
2D Model (DXF)
CAD data name Download
M-FSVPBL-122-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
M-FSVPBL-122-C
CAD

3D Light Model (STP,STL)
CAD data name RE Download
M-FSVPBL-122-C_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
