Boring >S-MDUN_INCH >S-MDUNR-324

Boring

S-MDUN_INCH


S-MDUNR-324 EDP:104371

Product Information

  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake.

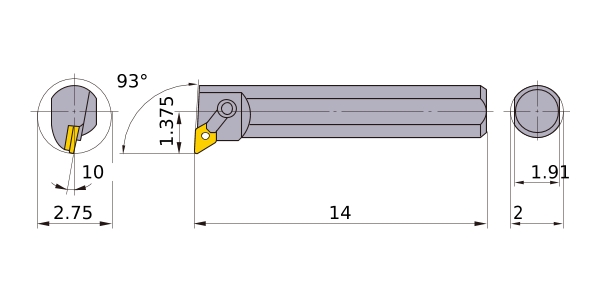

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S32V-MDUNR4
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 2.75
DCON 2
KAPR 93°
LF 14
WF 1.375
H 1.91
GAMF 10
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
