Boring >S-SDUC_INCH >S-SDUCR-062

Boring

S-SDUC_INCH


S-SDUCR-062 EDP:104446

Product Information

  • 7° positive insert, low cutting force.
  • Screw-on type
  • Two wall pocket.

The actual product may differ from the displayed image.

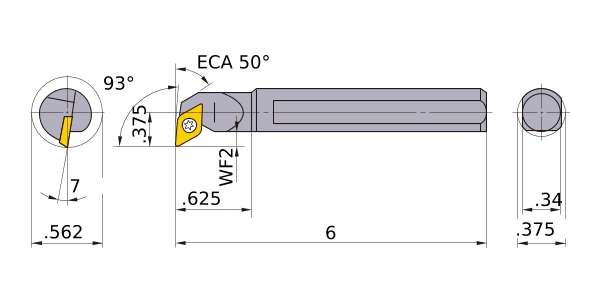

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S06M-SDUCR2
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .562
DCON .375
KAPR 93°
LF 6
LDRED .625
WF .375
H .34
GAMF 7
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__21.5
2D Model (DXF)
CAD data name Download
S-SDUCR-062
