Boring

S-STFE_INCH


S-STFEL-163 EDP:104465

Product Information

  • Shank sizes φ.625inch thru φ1.000inch.
  • Screw-on type
  • Recommended for aluminum, nonferrous metals and plastics.

The actual product may differ from the displayed image.

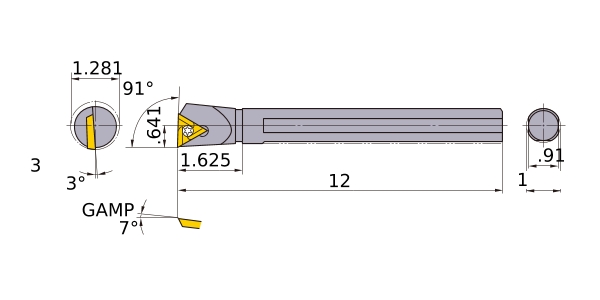

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S16T-STFEL3
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.281
DCON 1
KAPR 91°
LF 12
LDRED 1.625
WF .641
H .91
GAMF 3
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TE_32
2D Model (DXF)
CAD data name Download
S-STFEL-163
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-STFEL-163
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-STFEL-163_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
