Boring >S-STFE_INCH >S-STFER-123

Boring

S-STFE_INCH


S-STFER-123 EDP:104467

Product Information

  • Shank sizes φ.625inch thru φ1.000inch.
  • Screw-on type
  • Recommended for aluminum, nonferrous metals and plastics.

The actual product may differ from the displayed image.

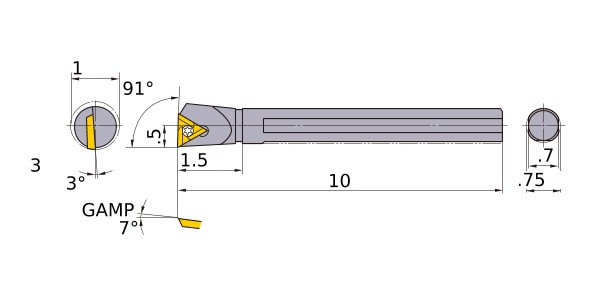

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 1
DCON .75
KAPR 91°
LF 10
LDRED 1.5
WF .5
H .7
GAMF 3
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TE_32
2D Model (DXF)
CAD data name Download
S-STFER-123
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-STFER-123
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-STFER-123_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
