Boring >S-SWUC_INCH >S-SWUCL-065

Boring

S-SWUC_INCH


S-SWUCL-065 EDP:181219

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

The actual product may differ from the displayed image.

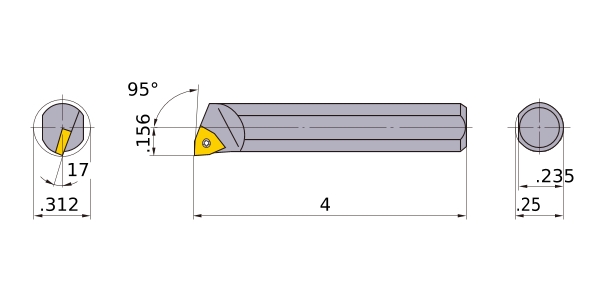

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S04H-SWUCL1.2
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN .312
DCON .25
KAPR 95°
LF 4
WF .156
H .235
GAMF 17
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__1.21
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Insert

  • Spare Parts
