Boring >S-SWUC_INCH >S-SWUCR-163

Boring

S-SWUC_INCH


S-SWUCR-163 EDP:181323

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

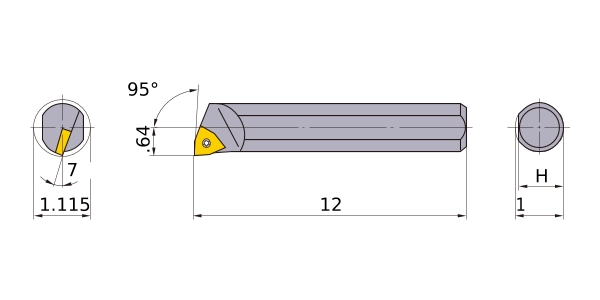

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S16T-SWUCR3
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 1.115
DCON 1
KAPR 95°
LF 12
WF .64
GAMF 7
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__32.5
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Insert

  • Spare Parts
