Boring

S-DVUN_INCH
（Double Clamp Dimple Bar）

S-DVUNR-203-C EDP:372023

Product Information

  • Negative rake.
  • New double clamp type.
  • Excellent cutting edge repeatability.
  • Holds inserts securely.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

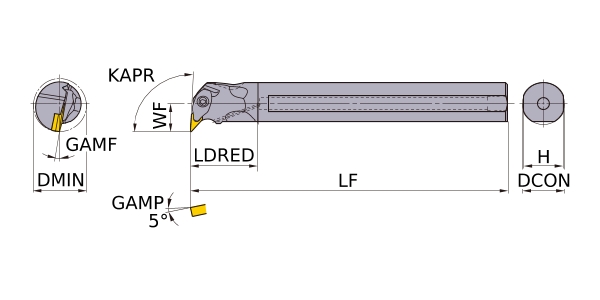

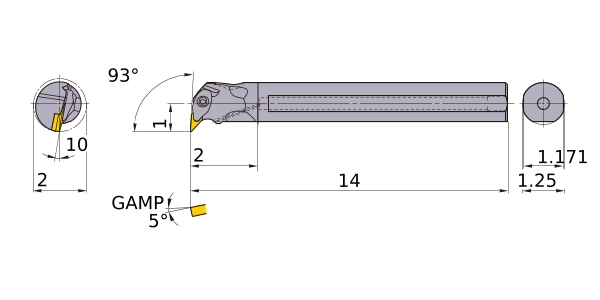

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI AX20U-DVUNR3
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 2
DCON 1.25
KAPR 93°
LF 14
LDRED 2
WF 1
H 1.171
GAMF 10
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__33
2D Model (DXF)
CAD data name Download
S-DVUNR-203-C
