Boring >S-FSCLP_INCH >S-FSCLPR-103-C

Boring

S-FSCLP_INCH


S-FSCLPR-103-C EDP:382601

Product Information

  • The minimum cutting diameter is φ.390inch.
  • 5°, 11° positive insert.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 6 times the diameter.

Type   [Outspread ]

Type   [Outspread ]

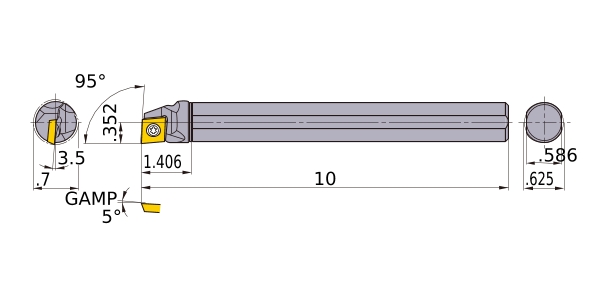

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .7
DCON .625
KAPR 95°
LF 10
LDRED 1.406
WF .352
H .586
GAMF 3.5
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number CP__32
2D Model (DXF)
CAD data name Download
S-FSCLPR-103-C
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-FSCLPR-103-C
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
