Boring >E-SCLC_C_INCH >E12S-SCLCR3

Boring

E-SCLC_C_INCH
（Coolant Through Carbide Boring Bars）

E12S-SCLCR3 EDP:62025362

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

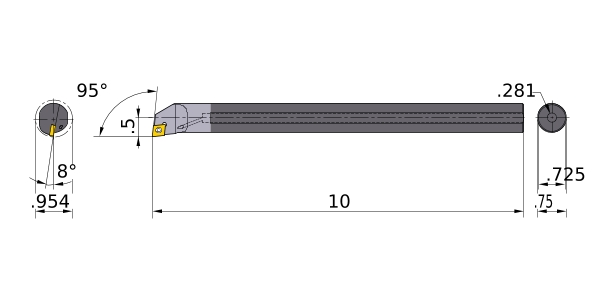

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E12S-SCLCR3
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .954
DCON .75
CNT .281
KAPR 95°
LF 10
WF .5
H .725
GAMF 8°
WT 2.2
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__32.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
