Boring >E-SCLC_C_INCH >E16T-SCLCL4

Boring

E-SCLC_C_INCH
(Coolant Through Carbide Boring Bars)

E16T-SCLCL4

Product Information

  • Two wall pocket.
  • 7° and 11° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.

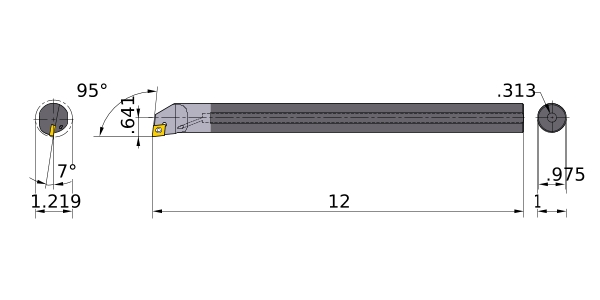

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.219
DCON 1
CNT .313
KAPR 95°
LF 12
WF .641
H .975
GAMF
WT 5
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__43

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
