Boring >E-SDUC_C_INCH >E12S-SDUCL3

Boring

E-SDUC_C_INCH
（Coolant Through Carbide Boring Bars）

E12S-SDUCL3 EDP:62025430

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

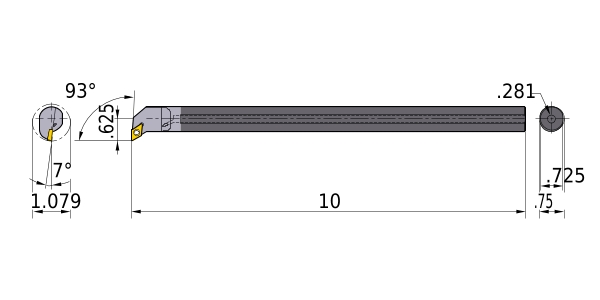

ANSI E12S-SDUCL3
Sales unit 1
Hand L
Stock
Unit of Length I
DMIN 1.079
DCON .75
CNT .281
KAPR 93°
LF 10
WF .625
H .725
GAMF 7°
WT 2.2
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__32.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
