Boring >E-SWLO_C_INCH >E05M-SWLOR1.2

Boring

E-SWLO_C_INCH
（Coolant Through Carbide Boring Bars）

E05M-SWLOR1.2 EDP:62024778

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

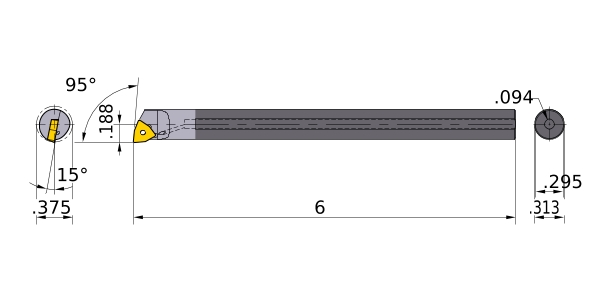

ANSI E05M-SWLOR1.2
Sales unit 1
Hand R
Stock

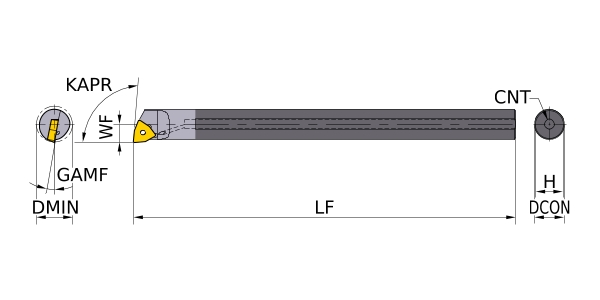

Unit of Length I
DMIN .375
DCON .313
CNT .094
KAPR 95°
LF 6
WF .188
H .295
GAMF 15°
WT 0.26
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__1.21

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
