Boring >E-SWLO_C_INCH >E06M-SWLOR2

Boring

E-SWLO_C_INCH
（Coolant Through Carbide Boring Bars）

E06M-SWLOR2 EDP:62024921

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type.
  • Carbide shanks are stocked in various diameters.

The actual product may differ from the displayed image.

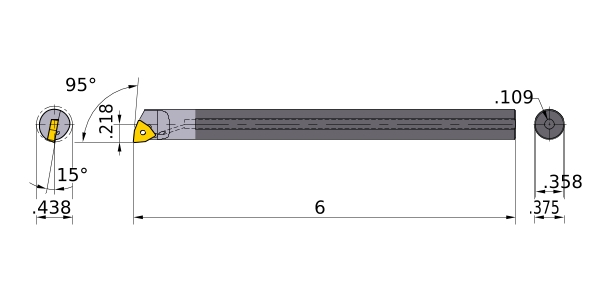

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI E06M-SWLOR2
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN .438
DCON .375
CNT .109
KAPR 95°
LF 6
WF .218
H .358
GAMF 15°
WT 0.31
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number WC__21.5

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Insert

  • Spare Parts
