Drills >MAS_INCH >MAS07344MB

Drills

MAS_INCH


MAS07344MB EDP:221989

Product Information

  • High hole accuracy.
  • Pre-hole drilling for rolled tap.

The actual product may differ from the displayed image.

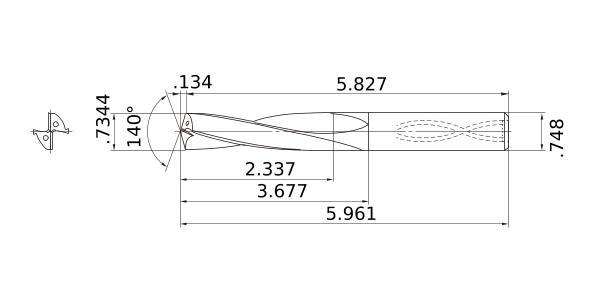

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade HTi10
Sales unit 1
Stock
Unit of Length I
DC .7344
DCON .748
SIG 140°
LF 5.827
OAL 5.961
LU 2.337
LCF 3.677
FHA 10°
ld 3
PL .134
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0002
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MAS07344MB
CAD

3D Light Model (STP,STL)
CAD data name Download
MAS07344MB
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
