MAS06563MB EDP:221938

Product Information

  • High hole accuracy.
  • Pre-hole drilling for rolled tap.

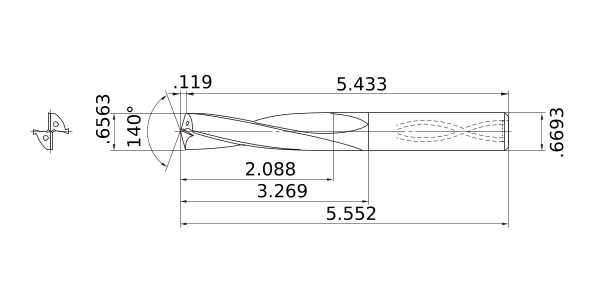

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Sales unit 1
Stock
Unit of Length I
DC .6563
DCON .6693
SIG 140°
LF 5.433
OAL 5.552
LU 2.088
LCF 3.269
FHA 10°
ld 3
PL .119
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance .0002
Min. Cutting EdgeDiameter Tolerance 0
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MAS06563MB
CAD
