Drills >MVE_INCH >MVE0992X02S100

Drills

MVE_INCH
（WSTAR）

MVE0992X02S100 EDP:662506

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I

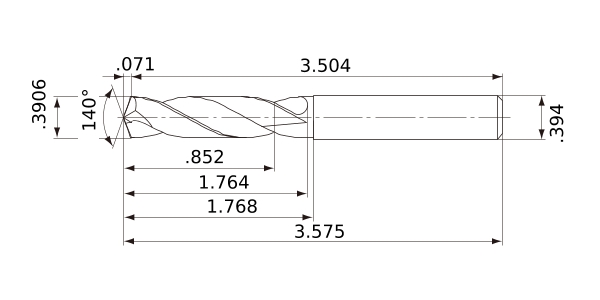

DC .3906
DCON .394
SIG 140°
LF 3.504
OAL 3.575
LH 1.768
LU .852
LCF 1.764
FHA 30°
ld 2
PL .071
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0009
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE0992X02S100
CAD
