Drills >MVE_INCH >MVE1151X02S120

Drills

MVE_INCH
（WSTAR）

MVE1151X02S120 EDP:662549

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

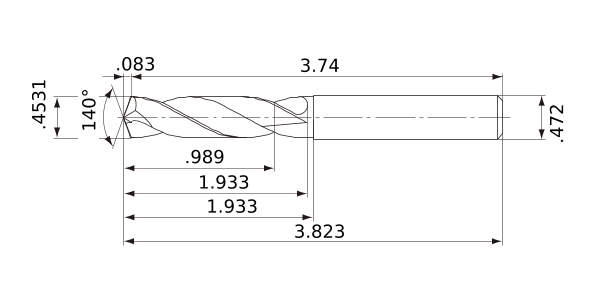

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .4531
DCON .472
SIG 140°
LF 3.74
OAL 3.823
LH 1.933
LU .989
LCF 1.933
FHA 30°
ld 2
PL .083
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0011
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE1151X02S120
CAD
