Drills >MVE_INCH >MVE1627X02S180

Drills

MVE_INCH
（WSTAR）

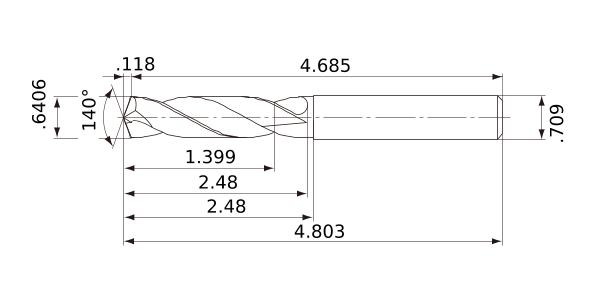

MVE1627X02S180 EDP:693679

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .6406
DCON .709
SIG 140°
LF 4.685
OAL 4.803
LH 2.48
LU 1.399
LCF 2.48
FHA 30°
ld 2
PL .118
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0011
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE1627X02S180
