Drills >MVE_INCH >MVE1746X02S180

Drills

MVE_INCH
（WSTAR）

MVE1746X02S180 EDP:693708

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

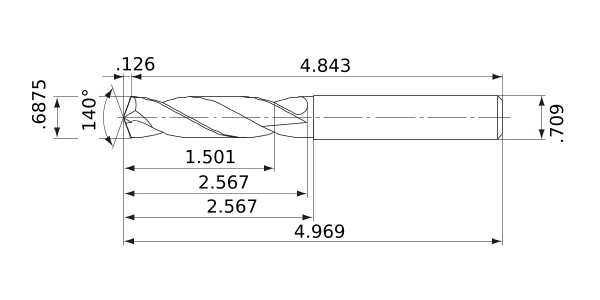

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I
DC .6875
DCON .709
SIG 140°
LF 4.843
OAL 4.969
LH 2.567
LU 1.501
LCF 2.567
FHA 30°
ld 2
PL .126
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0011
Type of Coolant External
2D Model (DXF)
CAD data name Download
MVE1746X02S180
