Drills >MMS_INCH >MMS1945X3D200

Drills

MMS_INCH
（WSTAR）

MMS1945X3D200 EDP:601754

Product Information

  • New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.
  • Long drill life and high efficiency drilling of holes in stainless steel.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP7020
Sales unit 1
Stock

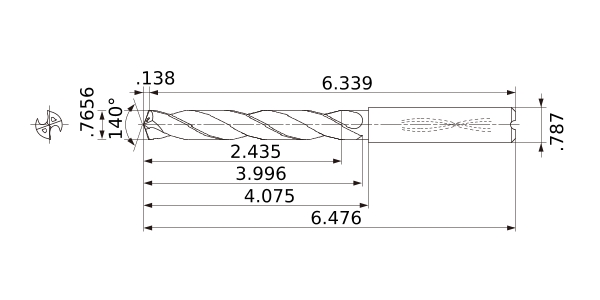

Unit of Length I
DC .7656
DCON .787
SIG 140°
LF 6.339
OAL 6.476
LH 4.075
LU 2.435
LCF 3.996
FHA 30°
ld 3
PL .138
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0013
Type of Coolant Internal
