Drills >MFE_INCH >MFE1111X02S120

Drills

MFE_INCH
（Solid Carbide Flat Bottom Drills）

MFE1111X02S120 EDP:10562697

Product Information

  • High efficiency drilling in various types of machining.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock

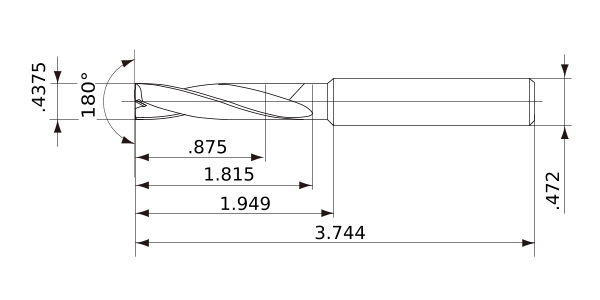

Unit of Length I
DC .4375
DCON .472
SIG 180°
OAL 3.744
LH 1.949
LU .875
LCF 1.815
FHA 20°
ld 2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -.0007
Type of Coolant External
2D Model (DXF)
CAD data name Download
MFE1111X02S120
CAD
