End Mills

AJX_INCH
（MULTI FUNCTIONAL MILLING）

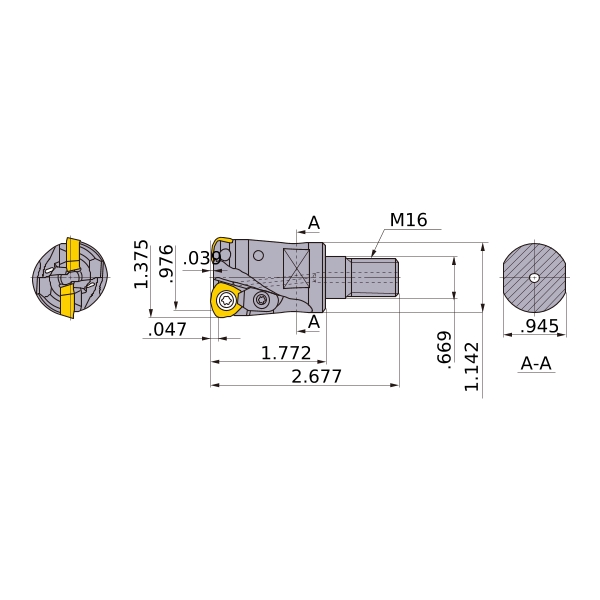

AJXU09R223AM1645 EDP:10533048

Product Information

  • Economical due to the use of 3 cutting edges.
  • High rigidity due to the employment of double clamp mechanics.
  • Suitable for high feed cutting.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .039
DC .976
DCX 1.375
DCON .669
DCSFMS 1.142
LF 1.772
OAL 2.677
S10 .945
APMX .047
GAMP +5°
GAMF -5°
WT 0.4
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AJXU09R223AM1645
