Unit :

End Mills >AQX_INCH >AQXUR124SA12L

End Mills

AQX_INCH


AQXUR124SA12L EDP:189886

Product Information

  • Air coolant through.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
A3 .219
DC .75
DCON .75
KAPR 90°
LF 7.25
LH 2.375
APMX .75
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 2

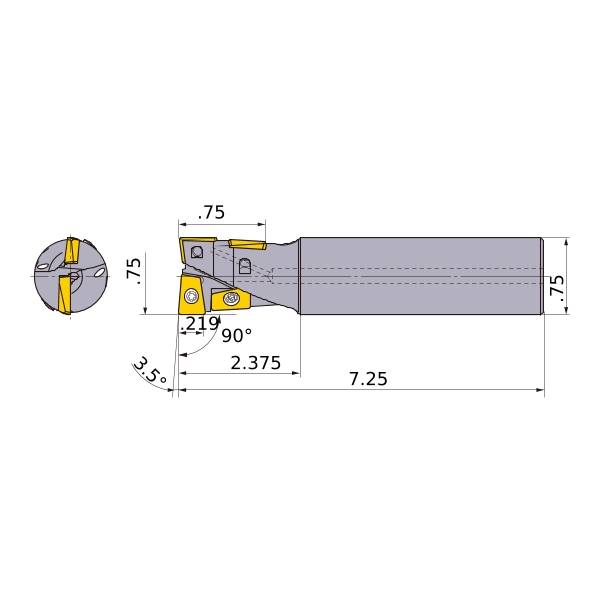

2D Model (DXF)
CAD data name Download
AQXUR124SA12L
CAD

3D Detail Model (STP,STL)
CAD data name Download
AQXUR124SA12L
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AQXUR124SA12L_IR0_016
.016 CAD CAD
AQXUR124SA12L_IR0_031
.031 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
