Mitsubishi Materials Web Catalog | Products Information | End Mills | AQX_INCH

Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

Sales unit

1

Hand

R

Stock

Unit of Length

I

A3

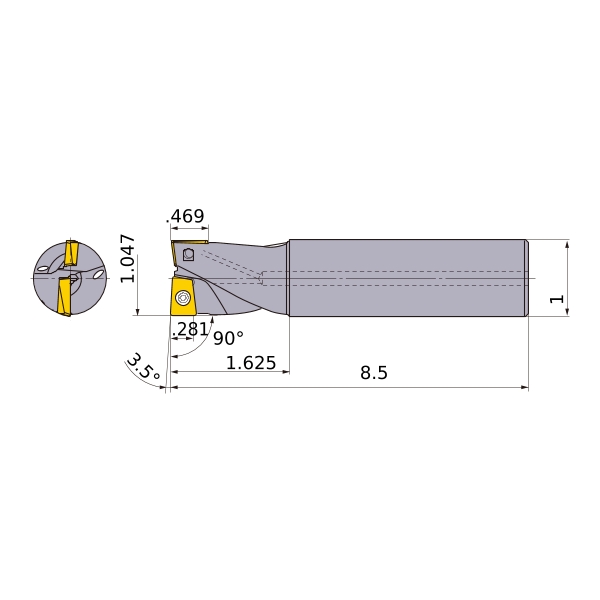

.281

DC

1.047

DCON

1

KAPR

90°

LF

8.5

LH

1.625

APMX

.469

Cutting item count: CICT

2

Peripheral effective cutting edge count: ZEFP

2

2D Model (DXF)
CAD data name	Download
