End Mills >BRP_INCH >BRP4UNR101W10

End Mills

BRP4_INCH


BRP4UNR101W10 EDP:166692

Product Information

  • A wide variety of sizes.
  • Max.depth of cut 5.5mm.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

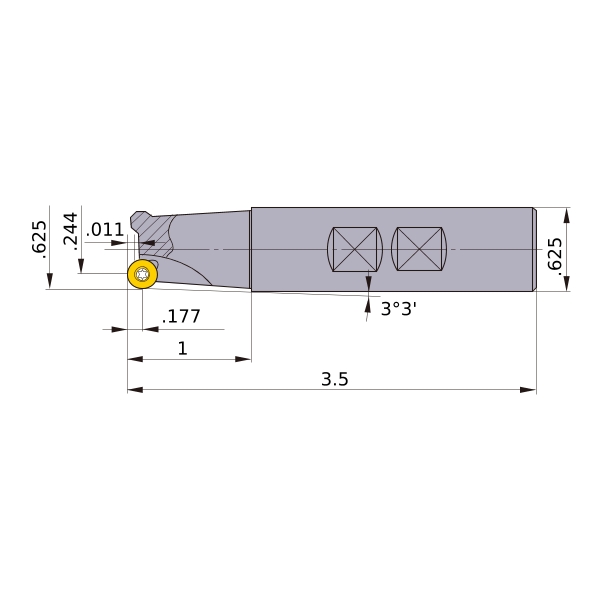

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
AZ .011
DC .244
DCX .625
DCON .625
B2 3°3'
LF 3.5
LH 1
APMX .177
GAMP -5°
GAMF -14°
RE .187
Cutting item count: CICT 1
