End Mills >CFSP_INCH >CFSPR051W16

End Mills

CFSP_INCH


CFSPR051W16 EDP:100662

Product Information

  • Excellent sharpness with 11° positive inserts.
  • 45°chamfer series.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

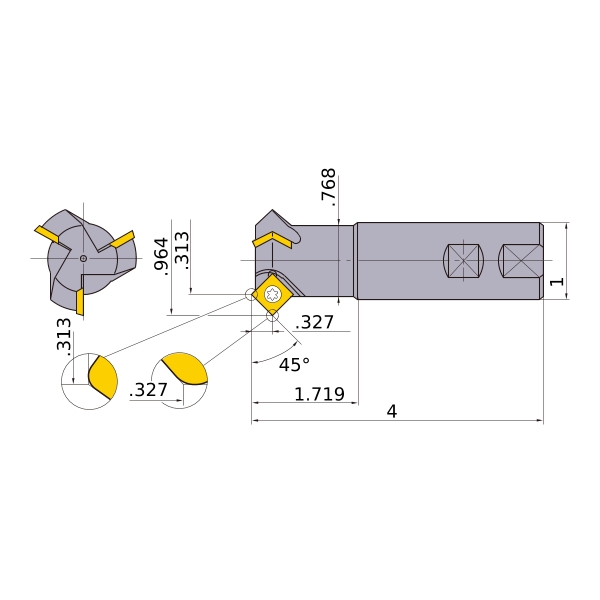

Unit of Length I
DC .313
DCX .964
DCON 1
BD .768
KAPR 45°
LF 4
LH 1.719
APMX .327
Cutting item count: CICT 1
