End Mills >SRM2_INCH >SRM216SAM2

End Mills

SRM2_INCH


SRM216SAM2 EDP:252777

Product Information

  • High rigidity body design.
  • Low resistance chipbreaker.
  • Key type clamp.
  • Shrink fit ready.
  • Air coolant through.
  • Suitable for roughing to semi-finishing of small and medium molds.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

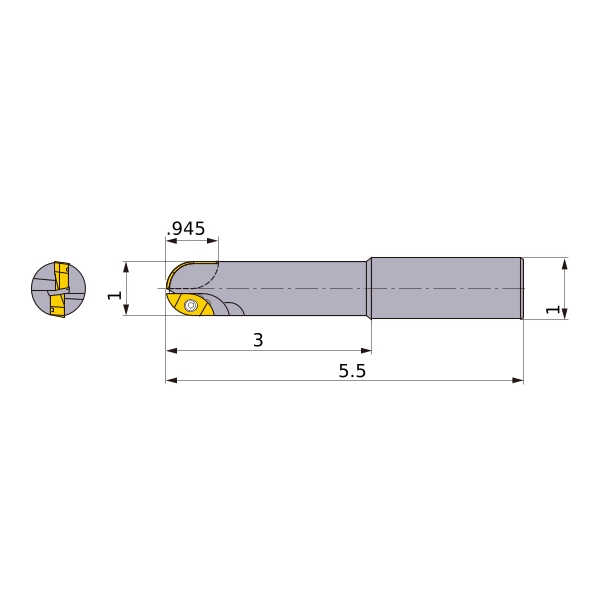

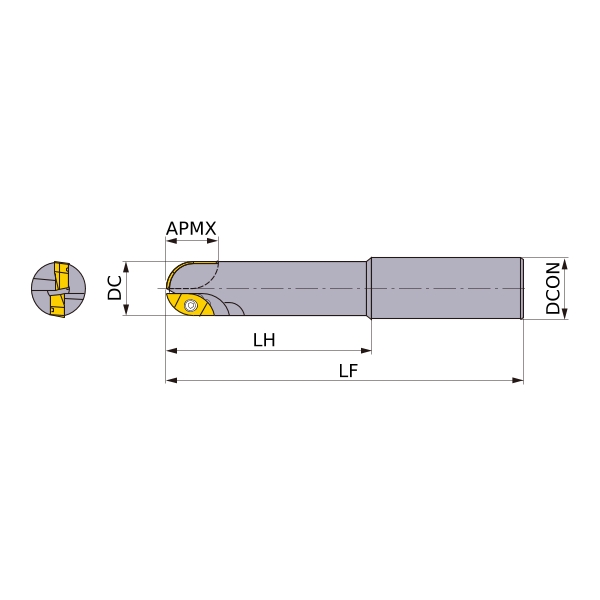

Unit of Length I
DC 1
DCON 1
LF 5.5
LH 3
APMX .945
RE .5
Cutting item count: CICT 2
2D Model (DXF)
CAD data name Download
SRM216SAM2
CAD

3D Detail Model (STP,STL)
CAD data name Download
SRM216SAM2
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SRM216SAM2_IR0_5
.5 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
