SRM212SAL4 EDP:252822

Product Information

  • High rigidity body design.
  • Low resistance chipbreaker.
  • Key type clamp.
  • Shrink fit ready.
  • Air coolant through.
  • Suitable for roughing to semi-finishing of small and medium molds.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

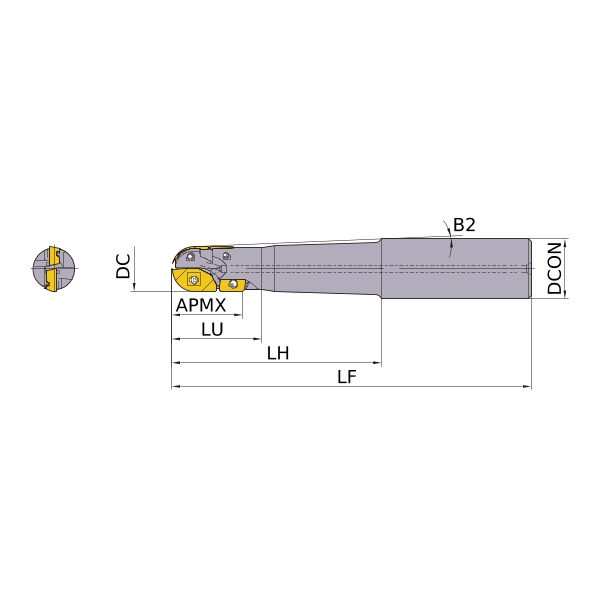

Unit of Length I

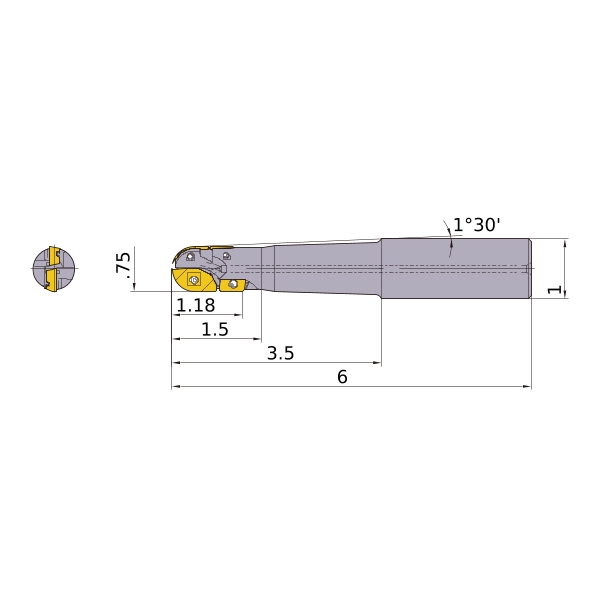

DC .75
DCON 1
B2 1°30'
LF 6
LH 3.5
LU 1.5
APMX 1.18
RE .375
Cutting item count: CICT 4
2D Model (DXF)
CAD data name Download
SRM212SAL4
CAD

3D Detail Model (STP,STL)
CAD data name Download
SRM212SAL4
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SRM212SAL4_IR0_375
.375 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
