End Mills >AXD7000_INCH >AXD7000UR242SA24SA

End Mills

AXD7000_INCH
(For Aluminum Alloy)

AXD7000UR242SA24SA EDP:462070

Product Information

  • Air coolant through.
  • High spindle speeds possible.
  • Low resistance inserts.
  • Excellent wall accuracy.
  • Multi functional milling.

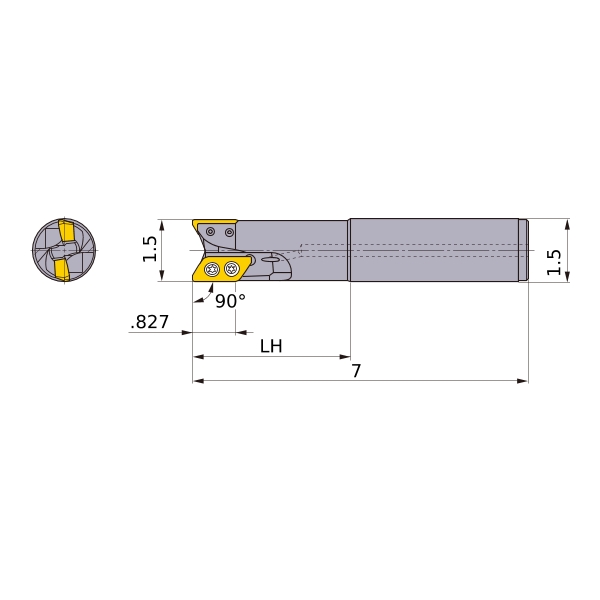

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.5
DCON 1.5
KAPR 90°
RMPX 13
LF 7
LU 3
APMX .827
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 36000
2D Model (DXF)
CAD data name Download
AXD7000UR242SA24SA
CAD

3D Detail Model (STP,STL)
CAD data name Download
AXD7000UR242SA24SA
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AXD7000UR242SA24SA_IR0_031
.031 CAD CAD
AXD7000UR242SA24SA_IR0_063
.063 CAD CAD
AXD7000UR242SA24SA_IR0_079
.079 CAD CAD
AXD7000UR242SA24SA_IR0_094
.094 CAD CAD
AXD7000UR242SA24SA_IR0_118
.118 CAD CAD
AXD7000UR242SA24SA_IR0_125
.125 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
