End Mills >WSX445_INCH >WSX445UR4804FA20M

End Mills

WSX445_INCH
（GENERAL CUTTING）

WSX445UR4804FA20M EDP:10521304

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

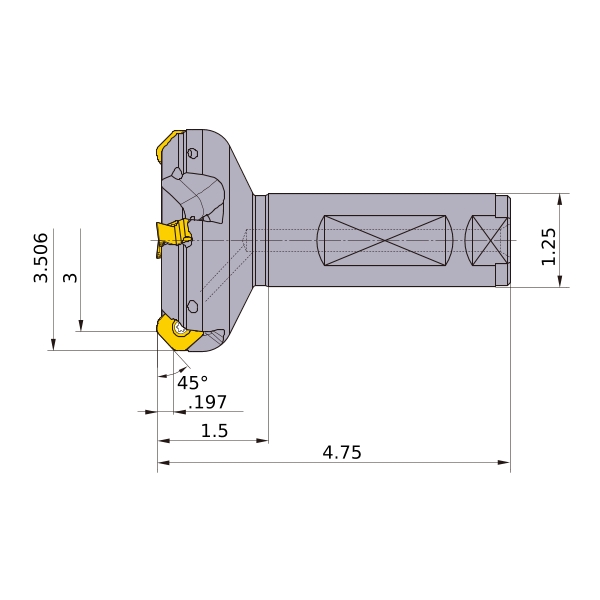

Unit of Length I
DC 3
DCX 3.506
DCON 1.25
KAPR 45°
LF 4.75
LH 1.5
APMX .197
GAMP -6°
GAMF -10°
WT 2.976
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
WSX445UR4804FA20M
