End Mills >ARP_INCH >ARP6UPR2003FA20M

End Mills

ARP_INCH
（Round insert cutter for difficult-to-cut materials）

ARP6UPR2003FA20M EDP:10527405

Product Information

  • High runout accuracy when indexing inserts.
  • Solid clamping system.
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.

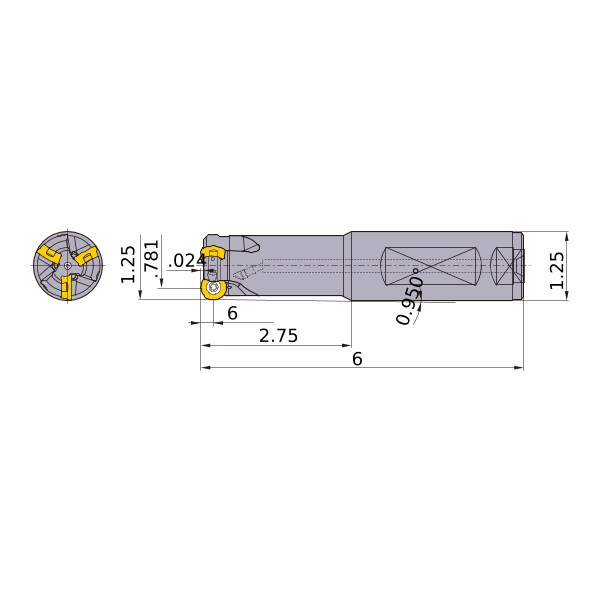

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
A1 .039
AZ .024
DC .781
DCX 1.25
DCON 1.25
B2 0.950°
RMPX 2.0°
LF 6
LH 2.75
APMX 6
GAMP +4°
GAMF -7°
WT 1.653
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
ARP6UPR2003FA20M
CAD
