End Mills >VPX200_INCH >VPX200UR1202FA12S

End Mills

VPX200_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX200UR1202FA12S EDP:10597415

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
VPX200 Square (With Center Hole)
  • Standard
  • Long
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX200_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX200_SCREW-IN Square (With Center Hole)
  • Screw in
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX200_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

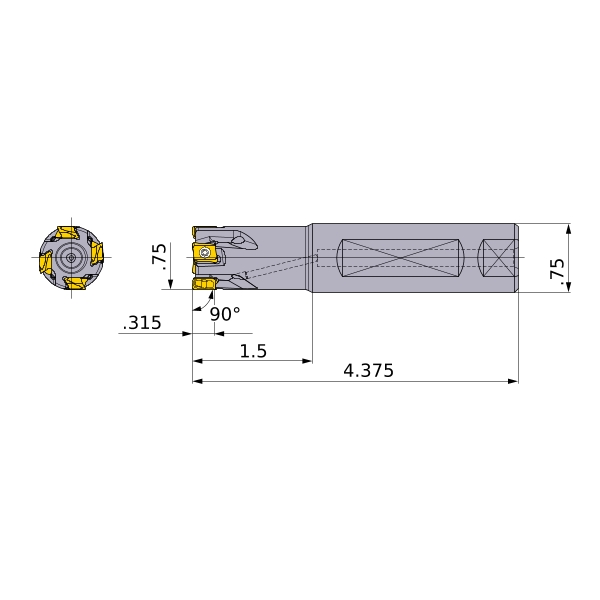

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC .75
DCON .75
KAPR 90°
RMPX 1.43°
LF 4.375
LH 1.5
APMX .315
WT 0.4
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Face effective cutting edge count: ZEFF 2
RPMX 34200
