End Mills >VPX300_INCH >VPX300UR2203AM1640

End Mills

VPX300_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX300UR2203AM1640 EDP:10597019

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
VPX300 Square (With Center Hole)
  • Standard
  • Long
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SCREW-IN Square (With Center Hole)
  • Screw in
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

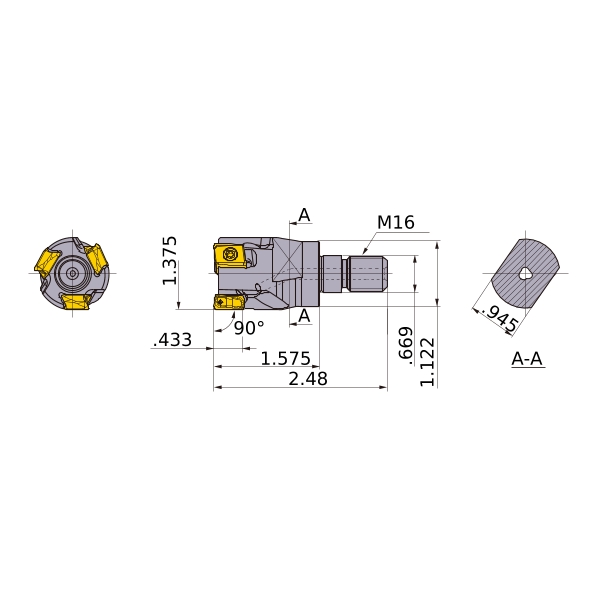

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 1.375
DCON .669
DCSFMS 1.122
KAPR 90°
RMPX 1.28°
LF 1.575
OAL 2.48
S10 .945
APMX .433
WT 0.5
CRKS M16
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
2D Model (DXF)
CAD data name Download
VPX300UR2203AM1640
CAD
