End Mills >VPX300_SHELL_INCH >VPX300UR2.0003AA1209

End Mills

VPX300_SHELL_INCH
（Multi-functional Cutter for High Efficiency Machining）

VPX300UR2.0003AA1209 EDP:10628065

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
VPX300 Square (With Center Hole)
  • Standard
  • Long
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_LONG Square (With Center Hole Long Cut Length)
  • Long cutting edge
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SCREW-IN Square (With Center Hole)
  • Screw in
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable
VPX300_SHELL_MM Square (With Center Hole Long Cut Length)
  • Shell
  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.
 Indexable

Product Information

  • By arranging the inserts tangentially, high holder rigidity is secured.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

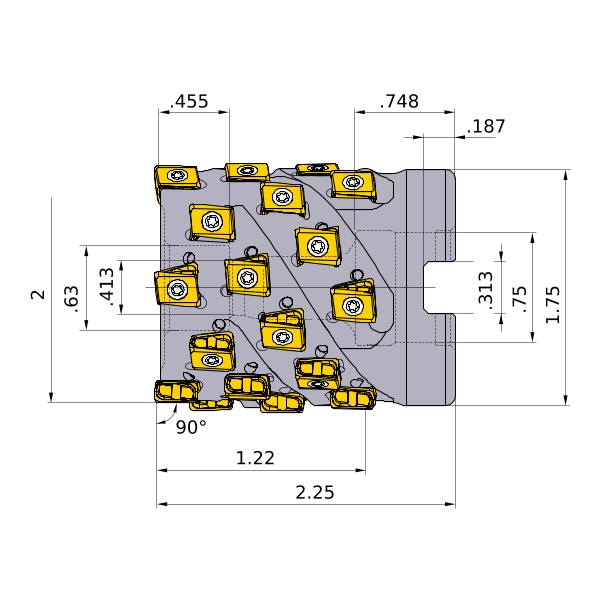

DC 2
DCON .75
DCSFMS 1.75
DAH .413
DCCB .63
KAPR 90°
RMPX 0.78°
L8 .187
LF 2.25
CBDP .748
LCCB .455
KWW .313
APMX 1.22
GAMP ‒6°
GAMF ‒22.5°
WT 1.146
Cutting item count: CICT 9
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
