End Mills >ASPX_SHELL_INCH >ASPX4UR2.0003AA21A15

End Mills

ASPX_SHELL_INCH
（CUTTING FOR TITANIUM ALLOY）

ASPX4UR2.0003AA21A15 EDP:10616963

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
ASPX Square (With Center Hole Long Cut Length)
  • HSK
  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable
ASPX_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable

Product Information

  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock

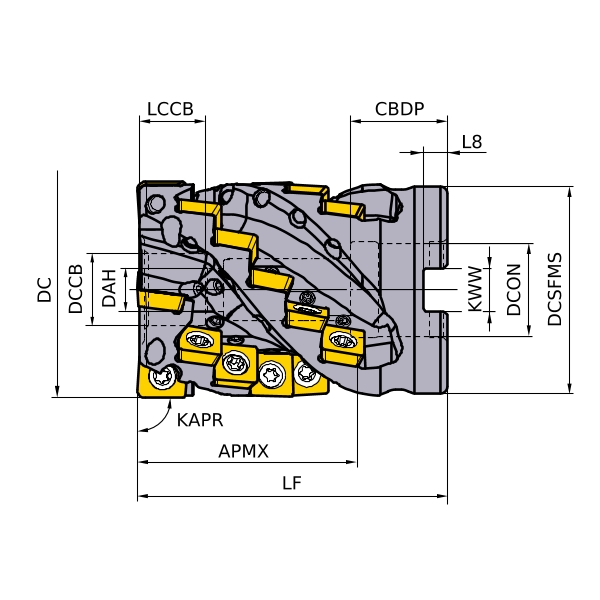

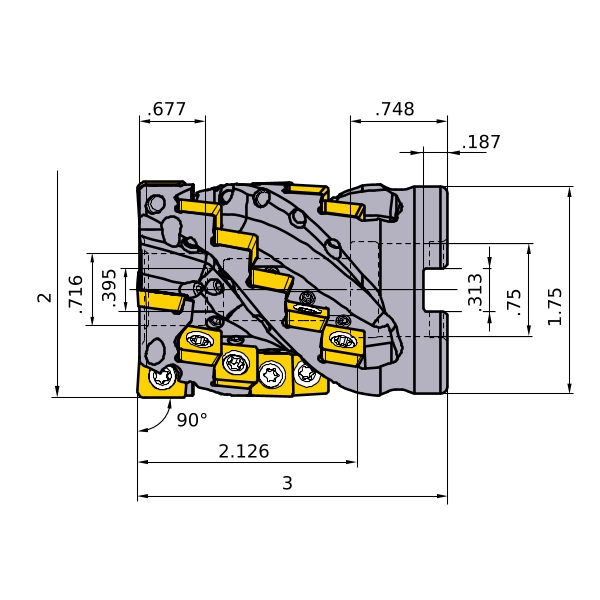

Unit of Length I
DC 2
DCON .75
DCSFMS 1.75
DAH .395
DCCB .716
KAPR 90°
L8 .187
LF 3
CBDP .748
LCCB .677
KWW .313
APMX 2.126
WT 1.08
Cutting item count: CICT 15
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
