End Mills >ASPX_SHELL_INCH >ASPX4UR2.5004CA25A24

End Mills

ASPX_SHELL_INCH
（CUTTING FOR TITANIUM ALLOY）

ASPX4UR2.5004CA25A24 EDP:10616970

METRIC Products
Shape Series Geometry Tooling Sheet Cutter Body Type Feature Structure
ASPX Square (With Center Hole Long Cut Length)
  • HSK
  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable
ASPX_SHELL Square (With Center Hole Long Cut Length)
  • Shell
  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.
 Indexable

Product Information

  • High performance titanium alloy milling.
  • Low cutting resistance due to the use of wavy inserts.
  • Suitable for heavy cutting due to holder rigidity.

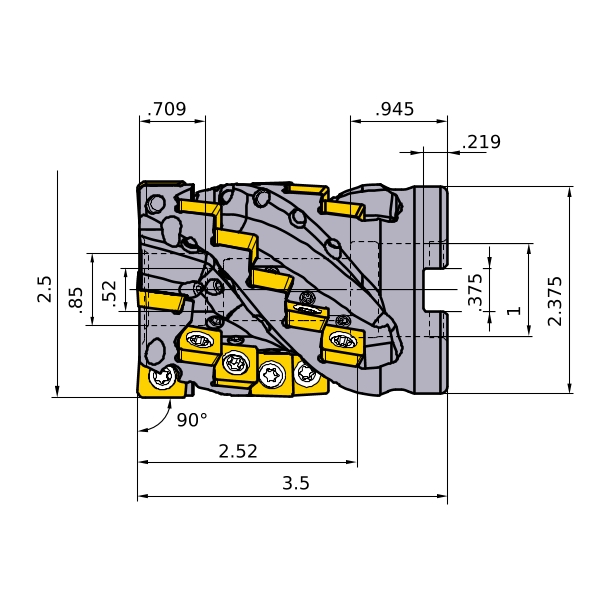

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DC 2.5
DCON 1
DCSFMS 2.375
DAH .52
DCCB .85
KAPR 90°
L8 .219
LF 3.5
CBDP .945
LCCB .709
KWW .375
APMX 2.52
WT 2.249
Cutting item count: CICT 24
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
